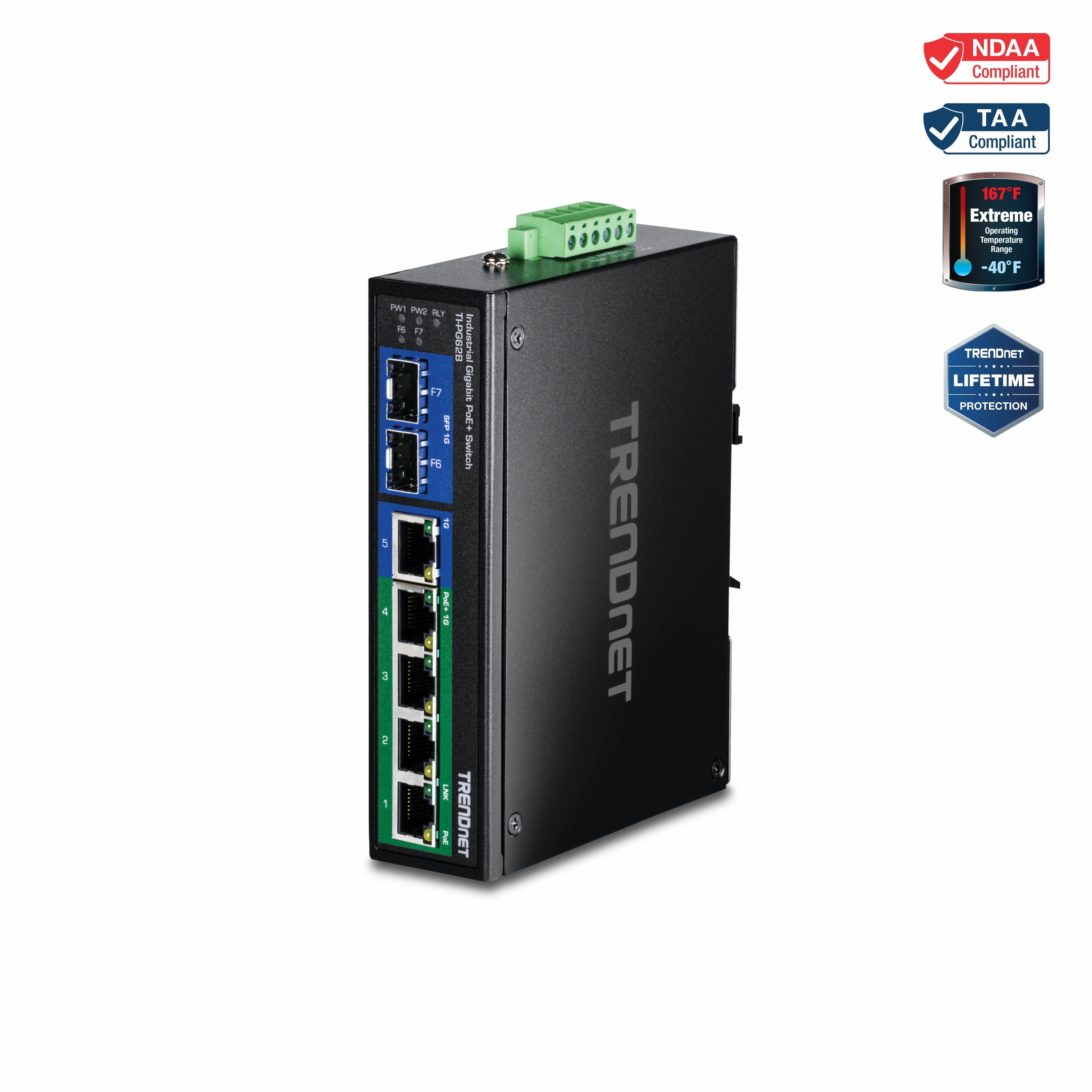

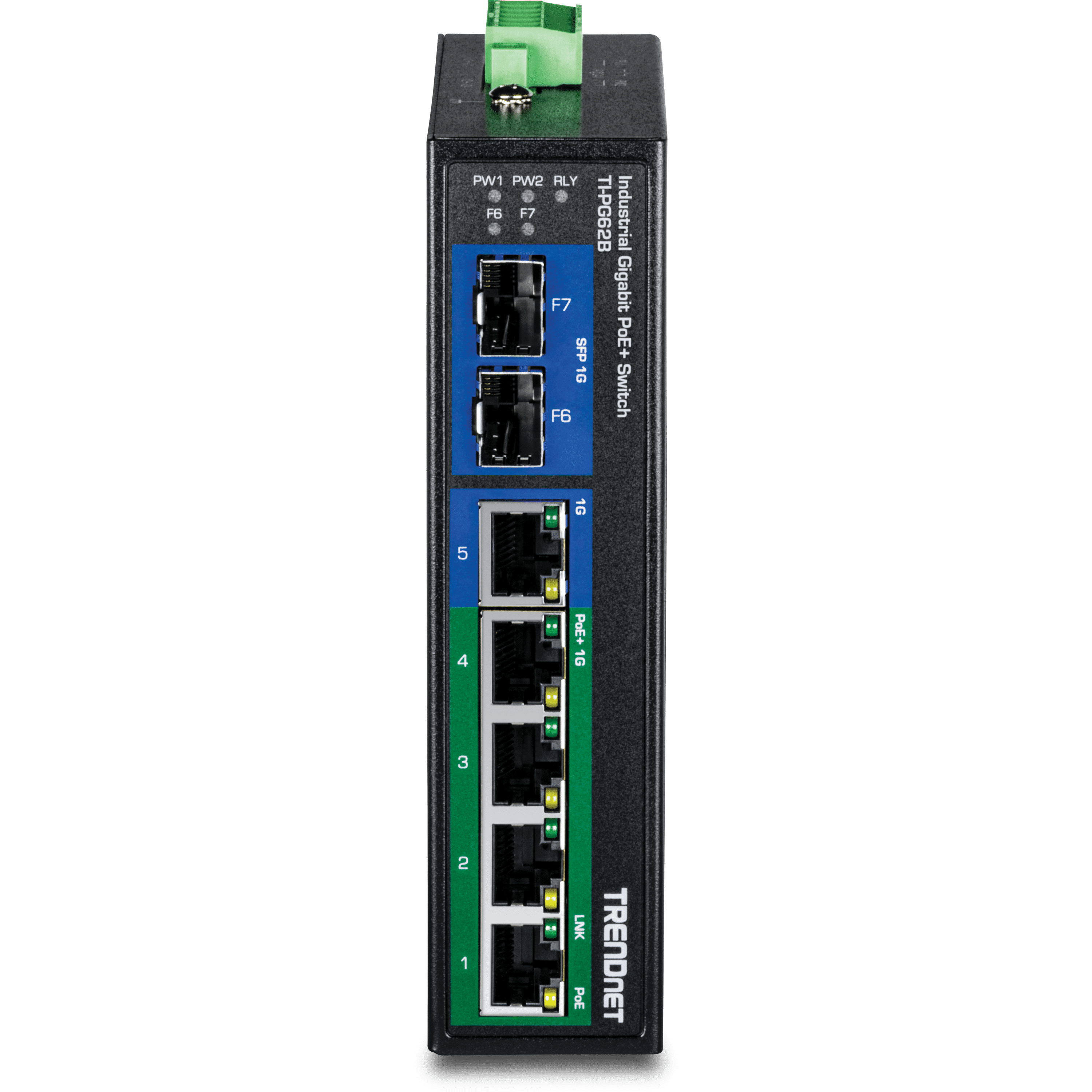

TRENDnet TI-PG62B, 6-Port Industrial Gigabit PoE+ DIN-Rail Network Switch
Product details
| Management number | 230499967 | Release Date | 2026/06/18 | List Price | $100.00 | Model Number | 230499967 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TRENDnet’s 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 2 x Gigabit SFP ports
- Up to 60W @ 12V; 120W @ 24 – 56V
- Hardened IP50 rated metal switch
- Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
- Dual 12–56V DC inputs provide redundant power with overload current protection
- Alarm relay triggered by power failure
- 14Gbps switching capacity
- Includes DIN-Rail mount and wall mount brackets
- Power supply sold separately (model: TI-S15052)
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
| Brand | TRENDnet |
|---|---|
| Network switch type | Unmanaged Switch |
| Number of ports | 6 |
| Transfer rate | 12 Gbps |
| Form factor | Wall Mount |
| Model name | TI-PG62B |
| Inputs/Outputs | 4 x Gigabit PoE+ Ports; 2 x 100/1000Mbps SFP slots; 6-Pin Removable Terminal Block |
| Accessories | • TI-PG62B • Removable terminal block • DIN-Rail and wall mount kit |
| Dimensions | 5.60 x 4.10 x 1.40 in |
| Weight | 0.74 lb |
| Has nrtl listing certification | N |
