ELING Gauge Kit Speedometer Auto Boat GPS 0-200km/h Tachometer 8000RPM Fuel Level Water Temp. 40-120℃ Oil Pressure 0-10Bar 0-145Psi Voltmeter 12V with Red Backlight
Product details
| Management number | 231408853 | Release Date | 2026/06/18 | List Price | $78.38 | Model Number | 231408853 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

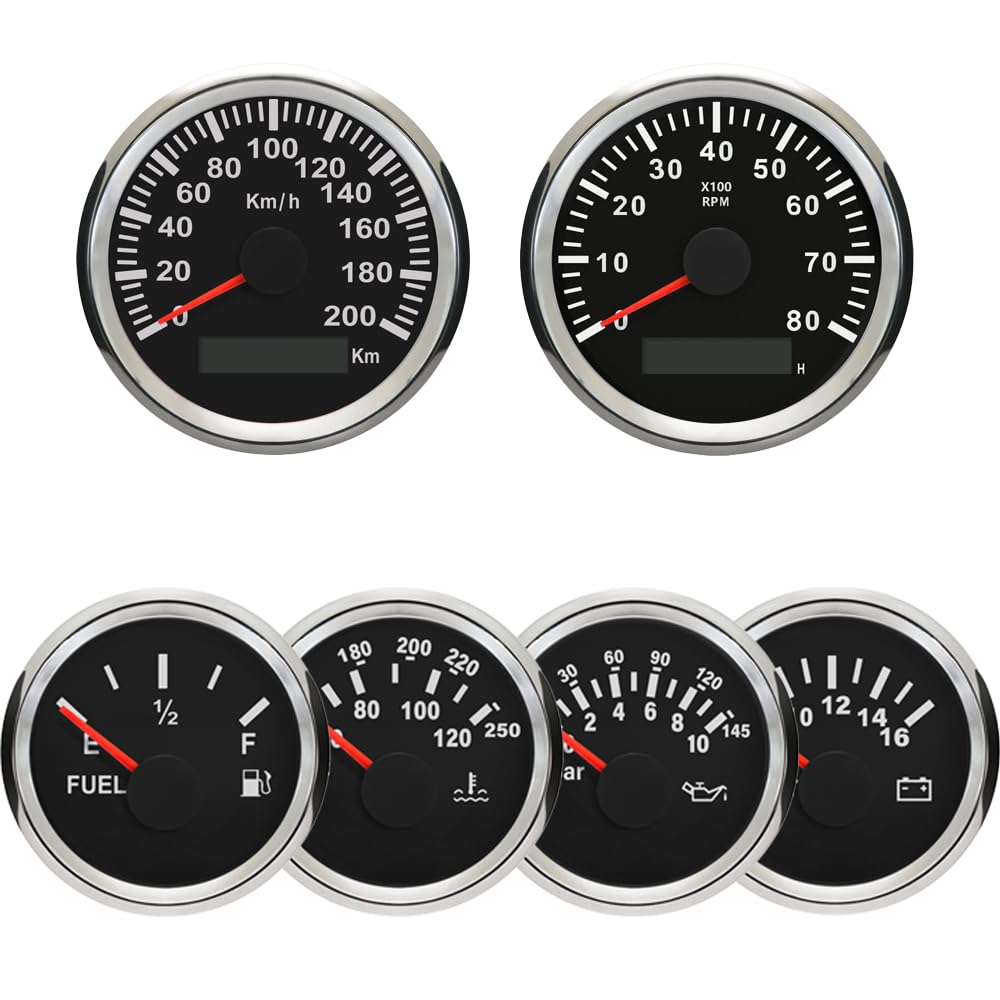

- 6 Gauge Set-GPS Speedometer, Tachometer, Fuel Level Gauge, Water Temperature Gauge, Oil Pressure Gauge and Voltmeter. Red backlight
- 6 Gauge Set-GPS Speedometer gauge indicating Range: 0-200km/h, Tachometer indicating Range: 0-8000 RPM, Fuel Level Gauge indicating Range: E-1/2-F, Water Temperature Gauge indicating Range: 40-120℃, Oil Pressure Gauge indicating Range: 0-10Bar 0-145Psi, Voltmeter indicating Range: 8-16V.
- 6 Gauge Set-GPS Speedometer's signal: GPS signal, Tachometer's signal: Pulse signal, Fuel Level Gauge's Signal: 0-190ohm, Water Temperature Gauge's Signal: 287.4-22.4ohm, Oil Pressure Gauge's Signal: 10-184ohm.
- 85mm gauge installtion: Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge. 52mm gauge installtion: Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.
- For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
| ASIN | B0C9ZWY8KW |
|---|---|
| Brand Name | ELING |
| Item Weight | 1 Kilograms |
| Part Number | EL0009 EL0054 |
| Manufacturer | ELING |
| Material Type | Plastic |
| Item Dimensions | 10.24 x 6.69 x 3.94 inches |
| Included Components | Gauge and Sensor |
| Warranty Description | 1 year |
