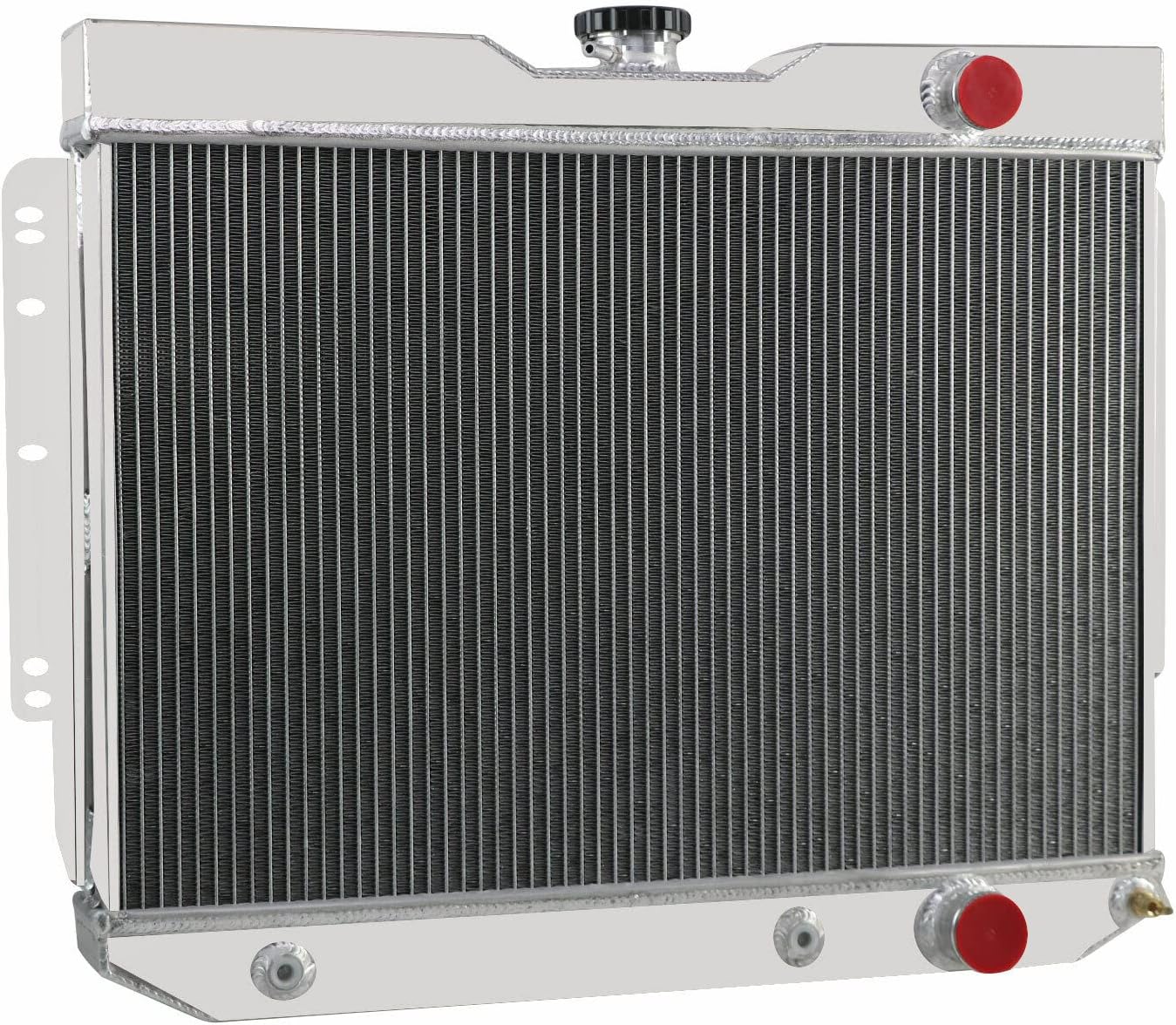

3 Row Core Radiator CC281 For 1959-65 Chevy Impala/Bel Air/El Camino/Biscayne/Chevelle/Kingswood 60 61 62 63 64 Aluminum Radiator+Shroud Fan+Relay

This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 14" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Size: 3 ROW Overall Size: 21 3/4"H x 28"W Core Size: 16 1/2"H x 24 1/2"W x 2"T Inlet & Outlet: 1 1/2" & 1 3/4" Mounting Type: Flanges Mounted Transmission Oilcooler: YES Shroud and Fans: The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine. FANS: Fan Diameter (in): 14.050" Maximum Fan CFM: 1730 cfm Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Vehicle Fitment: Chevy Impala 1959-1963 Only with BOTH Hoses on Pass Side Chevy Chevelle 1964-1965 Only with BOTH Hoses on Pass Side Chevy Bel-Air 1963-1965 Only with BOTH Hoses on Pass Side Chevy Kingswood 1959-1962 Only with BOTH Hoses on Pass Side Chevy Biscayne 1960-1965 Only with BOTH Hoses on Pass Side Chevy Caprice 1959-1962 Only with BOTH Hoses on Pass Side Chevy El Camino 1959-60/1964-65 Only with BOTH Hoses on Pass Side GMC Cabellero 1959-60/1964-65 Only with BOTH Hoses on Pass Side

• ✔️Overall Size: 21 3/4"H x 28"W / Core Size: 16 1/2"H x 24 1/2"W x 2"T; Compatible with 1959-1965 1960 1961 1962 1963 1964 Chevy El Camino/Impala/Chevelle L6 V8 AT
• ✔️Aluminum Radiator: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
• ✔️Cubauto 3 Row Aluminum Radiator Shroud Fan is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• ✔️This all Aluminum Radiator Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain; Direct OE replacement with drop-in precise fitment and easy installation.
• ✔️1-Year Warranty for Every Item .Do not hesitate to get one!
• OE/OEM Part Number: 281,SBR281,CC281,CU281,DPI281,KKS281
• Transmission Oil Cooler: ￠26×305×1/4-18NPT（T）
• 100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested
